Mechanical tests (Shock, Vibrations and Seismic Testing)

Several means dedicated to evaluating the behavior of structures and
equipment in representative working and extreme operation mechanical conditions.

Seismic Testing

  • Bi-axial seismic table :
         • Frequency range up to 100Hz
         • X/Z acceleration up to 3g
         • Equipment weight up to 2 tonnes
         • Table dimensions: 2m x 2m
         • Multi-physic instrumentation
  • Standard and Specific tests for example :
         • RCCE,
         • CRT 91 C113,
         • CRT 91 C 112 00 / EDF HN20E53
  • Cofrac accreditation for Seismic Tests

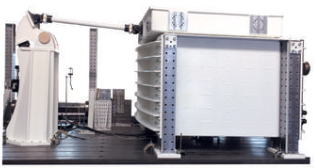

Shock and Vibrations testing

  • Three axis electrodynamic shakers for equipment characterization and qualification with the following characteristics:
         • Frequency range from 5 to 2000Hz
         • Steady state force up to 160kN
         • Impulse force up to 300kN
         • Acceleration up to 100g
         • Equipment weight up to 2000kg
         • Equipment dimensions up to 2 x 2m
         • Multi-physic instrumentation (+200 measurement channels)
         • Vibration / Climatic combined tests
         • Shock / Sine / Random / Combined / Replication control possibilities
  • Standard and Specific tests, for example :
         • NF EN 60068-2-6
         • NF EN 60068-2-27
  • Cofrac accreditation for Vibration Tests
