«After a detailed presentation of the Cetim-Trius method, during an industrial trade fair, I was immediately convinced of the relevance of this solution », remembers Emmanuel Gaujac, general manager of H+ Valves, a small company located near Lyon (France) specialising in the manufacturing of moulded stainless steel, bronze and carbon steel valves and fittings. The quality of the heat treatment of the raw carbon steel parts supplied by subcontractor foundries is now inspected right from receipt in record time. « In fact, an operator needs approximately one or two minutes to take ten measurements per valve - five on the body and as many on the bonnet - and approximately five minutes if he or she wants to record data », explains Emmanuel Gaujac, first user of the new inspection tool within H+ Valves. This is revolutionary considering that an operator can only make approximately ten metallographic replicas per day !
Quick and easy NDT
The Cetim-Trius solution makes it possible to analyse the metallographic structure (grain size) of carbon steel products with an ultrasonic signal. If the frequency spectrum of the signals returned by the opposite wall of the flange is of “low-frequency” type, it means that the metallographic structure is made of coarse grains, resulting from a non-compliant heat treatment. In fact, a non-compliant heat treatment may cause low toughness and, thus, poor impact resistance at low temperature.

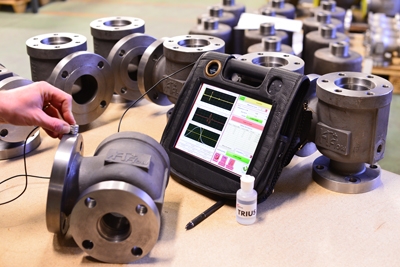

In order to avoid these problems, Total asked Cetim to set up a quick heat treatment quality inspection method for valves. The Cetim-Trius solution is comprised of a rugged tablet equipped with an ultrasonic board and a probe.
Cetim-Trius results to be a significant source of productivity gain for quality inspection operations: a key factor which led H+ Valves to choose this solution.
